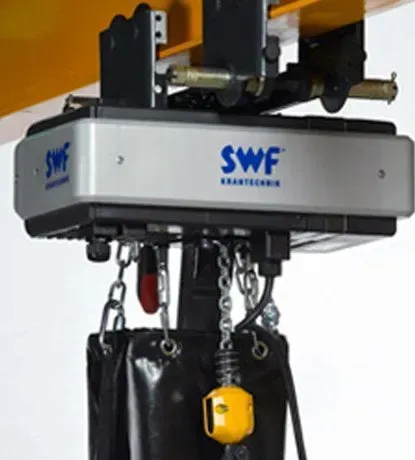

With attributes of flexibility, power and compactness, the SWF electric chain hoist is ideal for use in wind energy turbines. Compact dimensions and a standard lifting height of up to 140 metres are perfect prerequisites. High lifting speeds and safety clutch as overload protection guarantee safe and efficient operation.

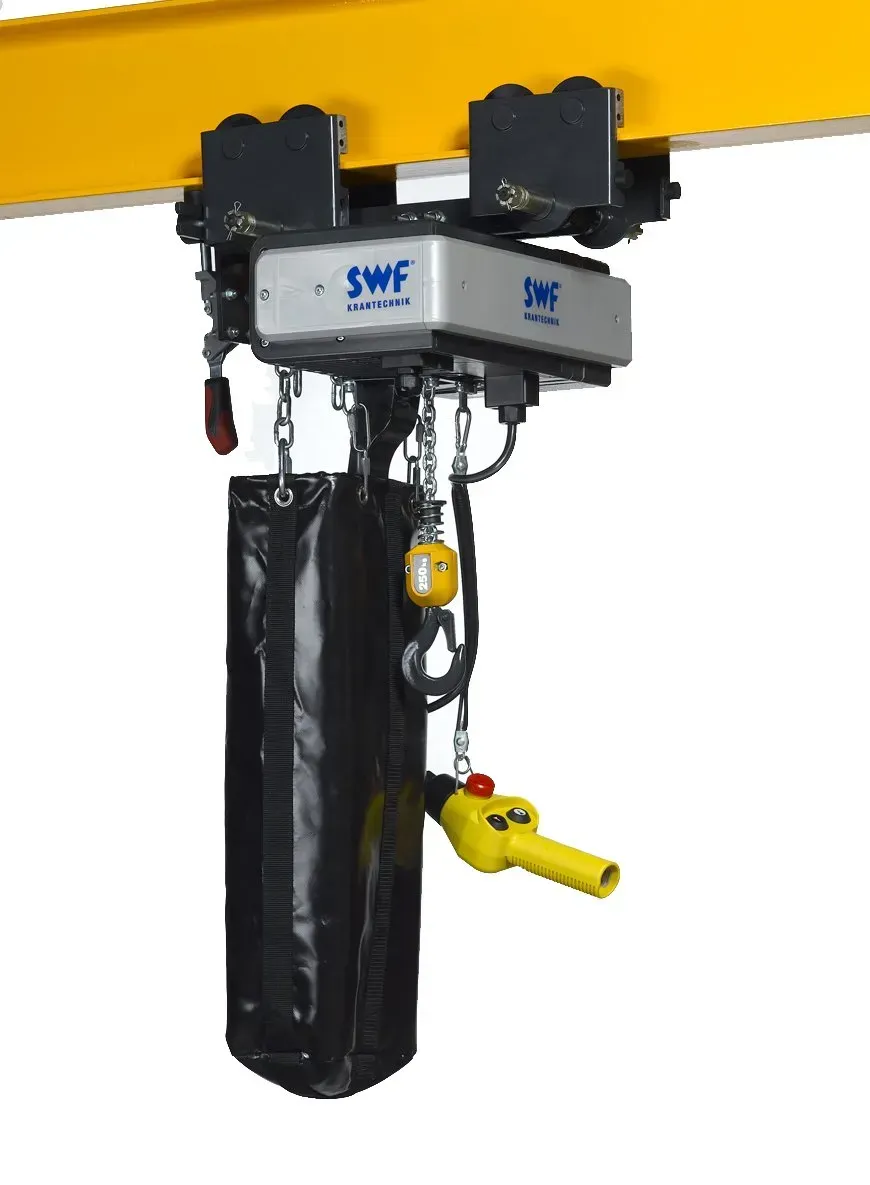

The robust chain bag was specially developed for areas where particularly long chains are used. Custom designs are also possible for special fields of operation. The robust construction and the transmission tested for longevity assure reliable and economically efficient operation.
Standard Equipment
- Loads up to 1000kg (height SWL available on request)
- Speeds up to 32 metres a minute
- Height of Lift up to 140 metres
- Push travel trolley with locking brake
- Two lifting speeds
- Thermal protection for hoist motor
- Operating voltage 400V/3ph/50Hz
- Control voltage 48V
- Protection rating IP55
- Control cable 3 metres
- Emergency stop button on control pendant
- Upper and lower hoisting limit switch
- Galvanised lifting chain, strength class T
Options Available

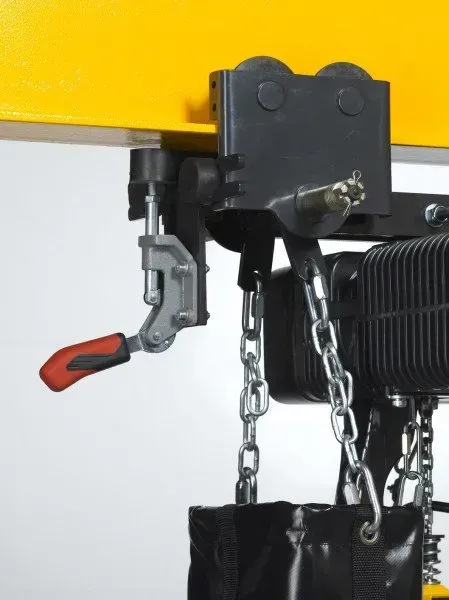

- Electric motor trolley
- Thermal protection for travel motor
- Radio remote control
- Robust chain collector
- Trolley locking devices
- Special suspensions
- Insulation for tropics
- Special voltages from 230V to
- 690V in 50Hz or 60Hz, 3ph
- Hook suspension
- Jib cranes and crane systems
Potential Nacelle Chain Hoist and Wire Rope Hoist Configurations

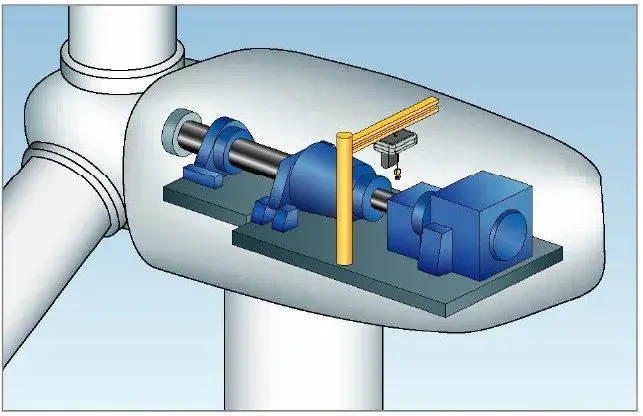

Jib Crane with
Electric Chain Hoists

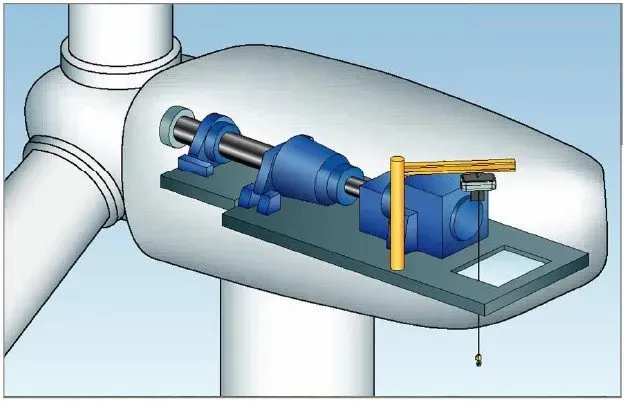

Jib Crane with
Electric Chain Hoists

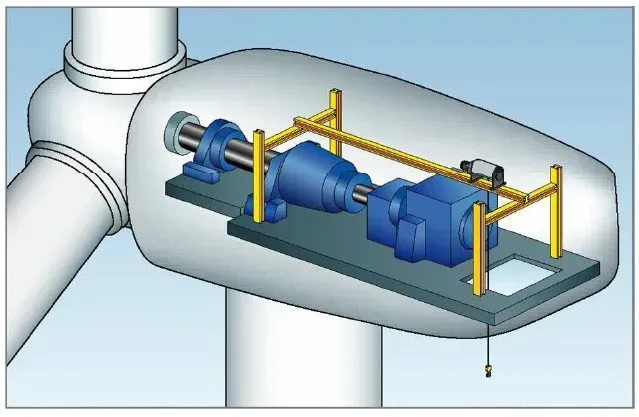

Wire Rope Hoist with Supporting Steel Gantry

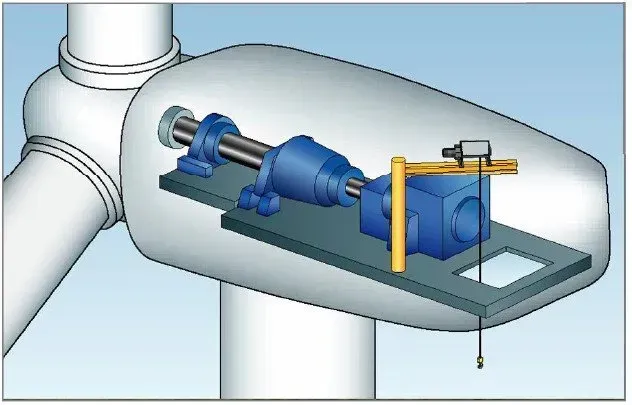

Jib Crane with
Wire Rope Hoist
Wire Rope Hoist with
Diversion Pulleys
