Explosion Proof (EX) Lifting Equipment

Explosion Proof (EX) Lifting Equipment

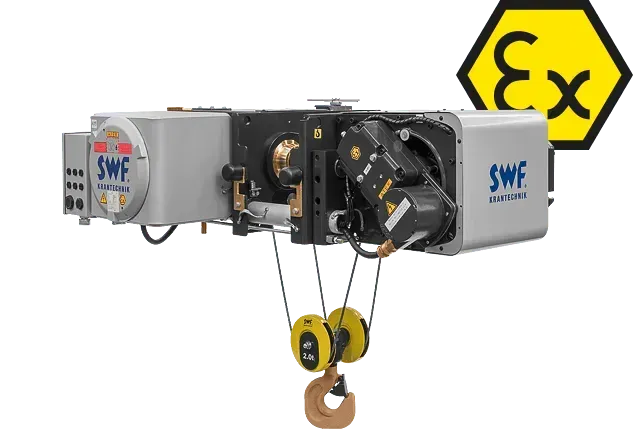

A image of an explosion proof (EX) wire rope hoist, with a yellow
​RHC Lifting Limited offers special components designed for use in explosion-proof atmospheres and fulfils the highest safety standards. RHC Lifting can offer:
  • Explosion Proof EX Chain Hoists
  • Explosion Proof EX Wire Rope
  • Explosion Proof EX Crane Kits
  • Explosion Proof EX Lifting Manual Equipment
    • Explosion Proof EX Chain Blocks
    • Explosion Proof EX Beam Trolleys
    • Explosion Proof Low headroom Combination

Explosion Proof (EX) Electrical Lifting Equipment

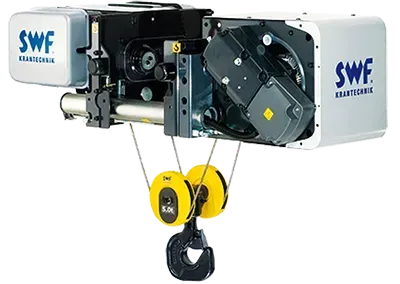

An SWF NOVA wire rope hoist

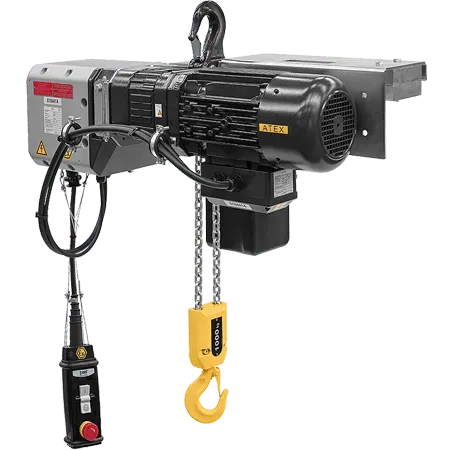

The back of an SWF explosion proof wire rope hoist
Explosion-proof crane components from SWF distinguish themselves – just like the basic NOVA models – because of their high-performance motors, compact design and approach dimensions as well as their tremendous longevity. SWF EX Product offers many of the same features as the standard equipment.

The products range from an electric chain hoist to a complete wire rope crane kit. The use of modern frequency inverter technology for crane and trolley travelling with an explosion-protected component package ensures gentle transporting of loads and low-wear operation of the crane.

RHC Lifting Limited can supply explosion-proof components, suitable for the following groups:
  • Zone 1 ATEX II2G c Ex de IIB T4
  • Zone 1 ATEX II2G c Ex de IIC T4
  • Zone 2 ATEX II3G c Ex nAde IIB T3
  • Zone 2 ATEX II3G c Ex nAde IIC T3
  • Zone 21 ATEX II2D c Ex IP65 135°C
  • Zone 22 ATEX II3D c Ex nA IP65 200°C
Explosion-proof crane components from SWF correspond to the guidelines according to ATEX 94/09/EG, the regulations of FEM and the European safety standards (EN). SWF EEx-Products are certified within the bounds of design approval (INERIS 03 ATEX 3015 X).

Manual Lifting Equipment

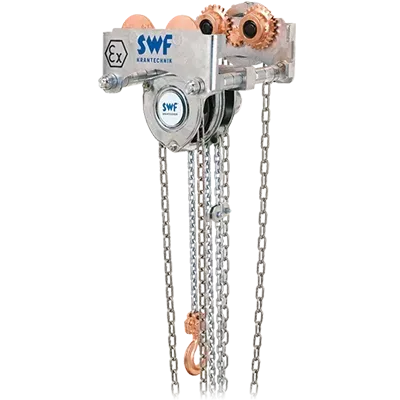

A CRAFTster EX SWF wire rope hoist, showing the chains
The CRAFTster EX range is designed to lift loads up to 20,000kg and is built with the same high quality as SWF electrical lifting equipment. The CRAFTster EX range comes with a 12-month warranty.

The SWF's manual EX range features include:
  • With overload device, slipping clutch
  • ATEX marking: Ex II 2 GD c IIC T4 T+135°C.
  • Suitable for gas & dust hazardous areas: Zone 1+2, Zone 21+22.
  • Galvanised load chain
  • Stainless steel hand chain
  • Bronze coated hooks, wheels
  • Aluminium powder coating
  • Ambient temperature -20°C to + 40°C

Explosion Proof (EX) Lifting Equipment

For further info contact us at  sales@rhclifting.com  or send an enquiry form
