RHC Lifting Limited can offer simple and lightweight solutions to suit a wide variety of applications with a capacity of 60kg and 2,000kg. Using SWF's LIGHTster (aluminium) and ProfileMaster (steel) modular crane kits are the perfect lightweight solution for overhead material handling.
The profile crane system has a proven track record with companies where the fast and coordinated transfer of materials is of the essence. The system can thus be seen in many manufacturing and warehouse premises. A fixed gantry is not required as a direct connection between suitable roof structures is feasible.
The crane can be operated both manually or using electric drives, with single-girder, double-girder (for larger spans), monorail curves, switch points and turntable modules available, the light crane systems can be designed to suit your individual needs. Due to the modular nature of this system installation, modification or extensions are easy thanks to simple connections.
Both light crane systems work in perfect combination with SWF SK chain hoists integrated frequency inverter allows for sensitive and gentle operations can be performed accurately.
Through RHC Lifting Limited’s careful design, Light crane systems are available at a competitive price and have a prolonged service life combined with low running costs.
Possible solutions include:

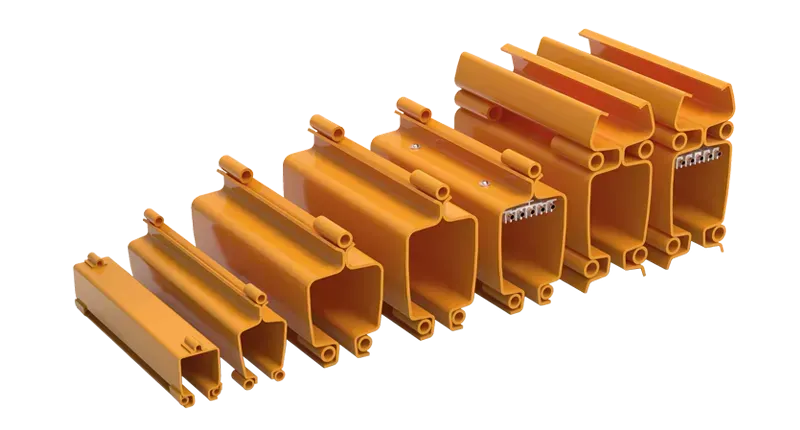

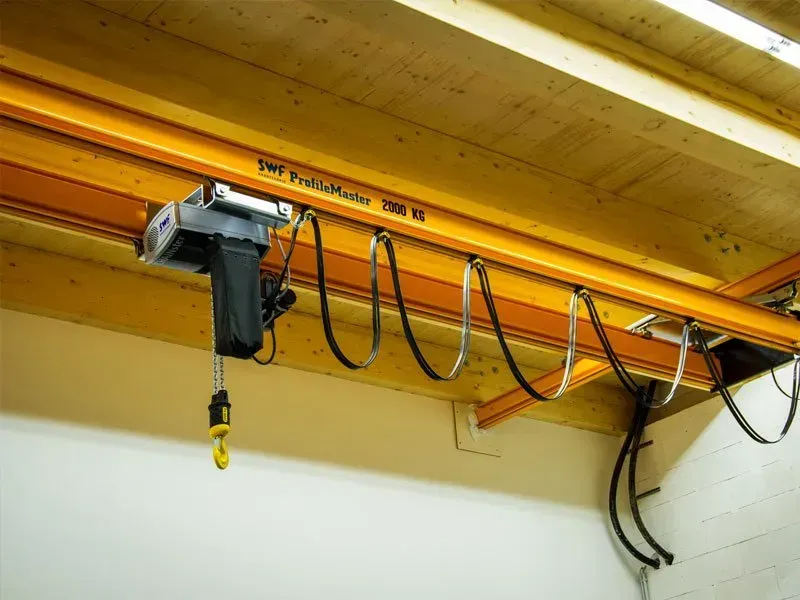

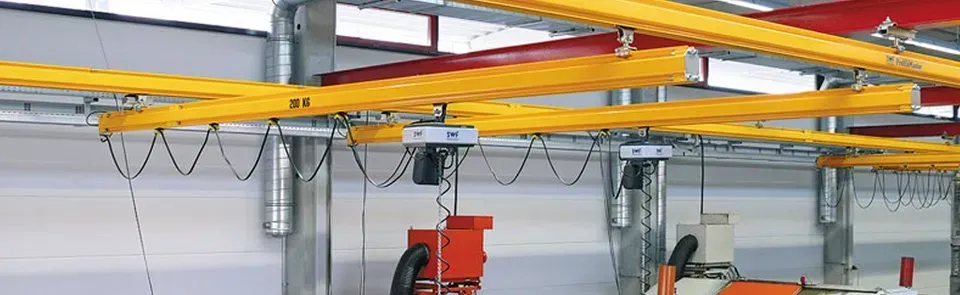

The ProfileMaster is a flexible steel crane system for loads between 125 and 2,000 kg. The system is suitable for applications in areas capable of bearing only low static loads and in areas with a low number of free securing points.
The sections are cold-formed and are extremely rigid, with a closed shape to protect the inner runners against dirt and dust.

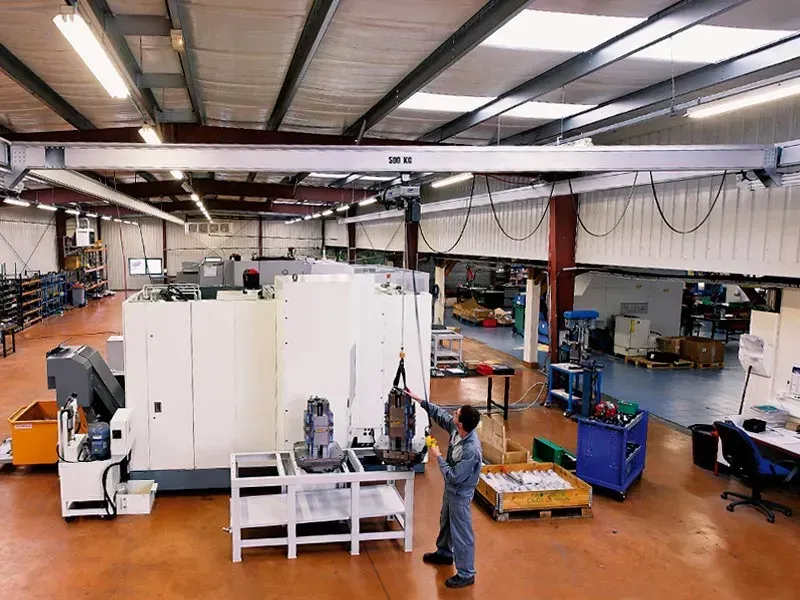

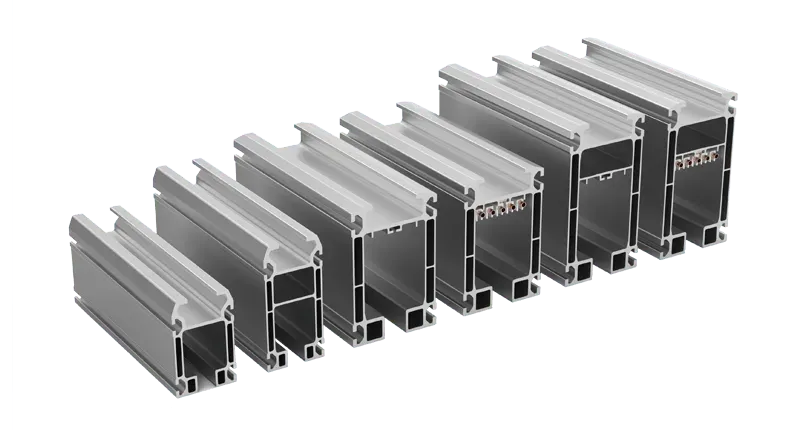

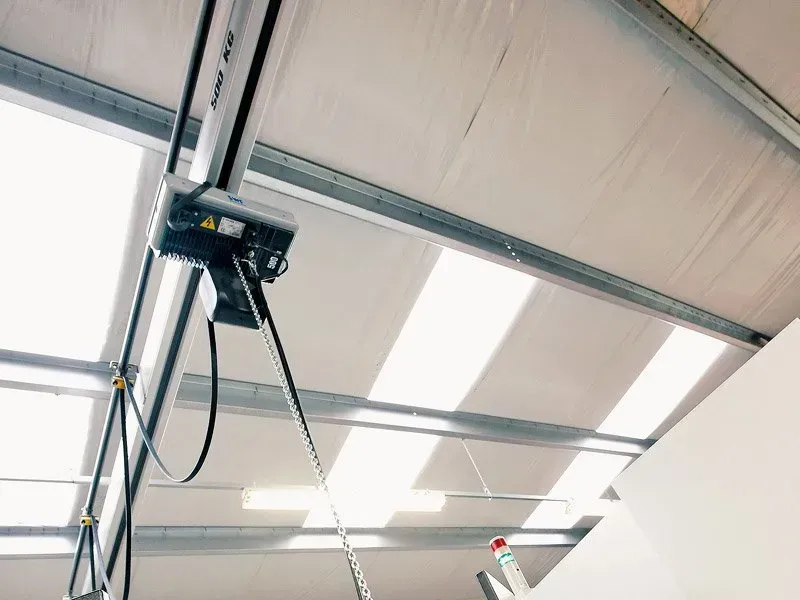

Offering a similar feature to the ProfileMaster, The LIGHTster is a versatile and cost-effective aluminium lightweight crane system for loads between 125 and 2,000 kg.
The aluminium profiles also offer a non-corrosive material, diminished operating noise, and low vibration. Installation is made easier thanks to the reduced weight of the aluminium, reducing installation costs.
