Electric Chain Hoists

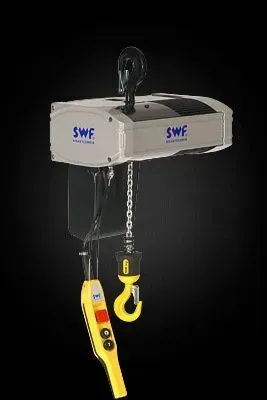

The CHAINster
The CHAINster has been designed to be efficient, economical and built to the highest quality, whilst offering:
High safety in operation
An Emergency Stop button, 48 V contactor control, drop stops, robust industrial design
Optimise space
Compact dimensions and best hook approach, space-saving trolleys
Efficient operation
Upper and lower lifting limit switch, minor noise emission, stepless load moving with motor trolley and inverter
Low installation and maintenance costs

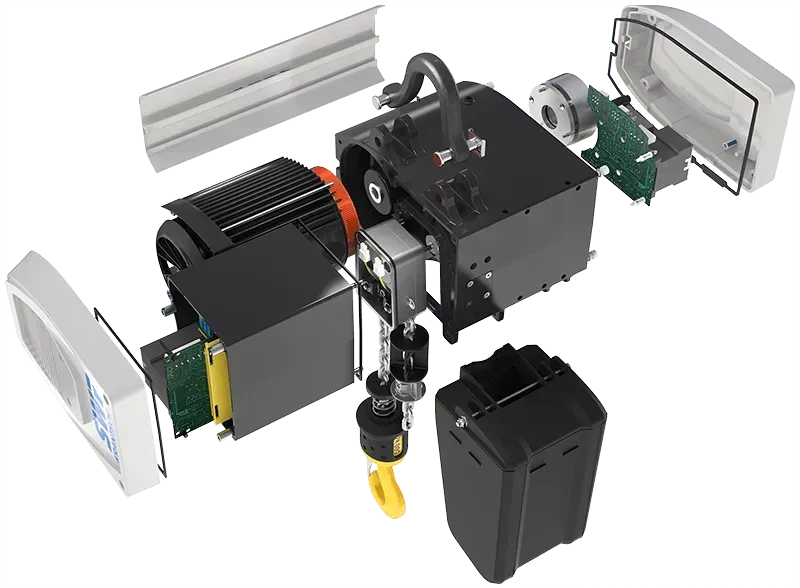

Standardized electrical modules in general with plug connections, easy accessibility due to modular construction, low weight
Standard Equipment:
• Upper hook
• 2 lifting speeds up to 6/1 ratio depending to load
• Up to 1.250 kg only single fall
• Chain sprocket with intermediate teeth and metal chain guide
• Mechanical overload device
• 2-step upper and lower emergency lifting limit switch
• High-quality reliable contactor control 48 V with the main switch
• Electrical connections pluggable, for relieved maintenance
• Thermal protection for lifting motor
• Control pendant IP65 with emergency button, with plug
• Lifetime brake
• Separate brake rectifier
• Electrical provision for motor trolley
• Housing made completely from aluminium
• Protection IP55, isolation class H and topicalization
• Ambient temperature -20 °C up to +50 °C
• Epoxy powder painting, 70 μm
Options:
• Optional push trolley or inverter-controlled motor trolley
• Trolley limit switch
• Upper eye suspension instead of hook
• Load chain and hook made from stainless steel
• Second lifting brake
• Free programmable 2-step lifting limit switch
• Protection IP66
• Rain cover
• Standby heating for motors and electrics
• Remote radio control „RadioMaster"
• Explosion-proofed application for Zone 22
• Power supply from 230V up to 675V
• HandyMaster control pendant for increased efficiency
• Version for the food industry
